• Year
  • 1952/1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 31278
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 5S22AN Ch= 5C3 - Admiral brand Continental
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes

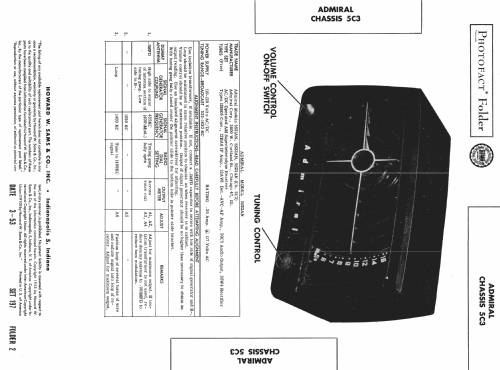

  • SAMS Photofact shows the 3 Admiral models 5S21AN (ebony plastic), 5S22AN (mahagony plastic) and 5S23AN (ivory plastic) for the same 5 tube chassis 5C3.
  • External source of data
  • Ernst Erb

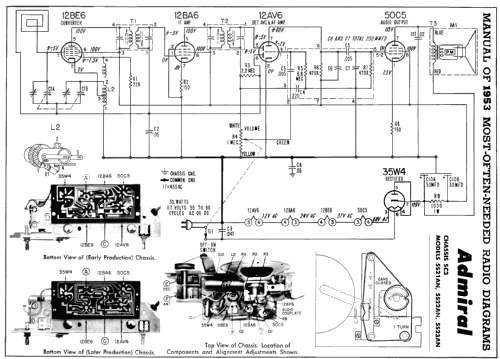

  • Circuit diagram reference
  • Rider's Perpetual, Volume 23 (last), covering up to 1954
