5E22 AN

5E22 AN; Admiral brand (ID = 1808964) Radio 5E22 AN; Admiral brand (ID = 1808965) Radio
5E22 AN; Admiral brand (ID = 1808966) Radio 5E22 AN; Admiral brand (ID = 1808968) Radio
5E22 AN; Admiral brand (ID = 1808971) Radio 5E22 AN; Admiral brand (ID = 1808972) Radio
5E22 AN; Admiral brand (ID = 1808973) Radio
Use red slider bar for more.
5E22 AN; Admiral brand (ID = 1808964) Radio
Admiral brand: 5E22 AN [Radio] ID = 1808964 1400x1049

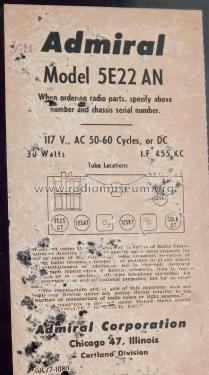

Select picture or schematic to display from thumbnails on the right and click for download.
For model 5E22 AN, Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6 35Z5
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 50-60 cycles, 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 5E22 AN - Admiral brand Continental
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11.625 x 5.625 x 7.375 inch / 295 x 143 x 187 mm
Notes

Admiral 5E22 AN Table Radio. Similar to the Admiral model 5E22, but lacks handle.

Net weight (2.2 lb = 1 kg) 5 lb 12 oz (5.75 lb) / 2.611 kg

Model page created by Wayne Childress. See "Data change" for further contributors.
