5F12 Ch= 5F1; Admiral brand (ID = 351454) Radio

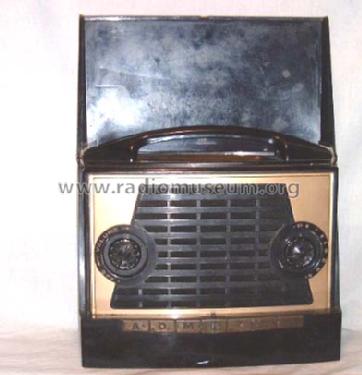

Admiral brand: 5F12 Ch= 5F1 [Radio] ID = 351454 393x406
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5F12 Ch= 5F1, Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 117 / 67.5 & 7,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 5F12 Ch= 5F1 - Admiral brand Continental
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Selenium rectifier. Loop antenna. Color=Ebony.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 09, 1949
