• Year
  • 1952 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 31268
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 5M21 Ch= 5M2 - Admiral brand Continental
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

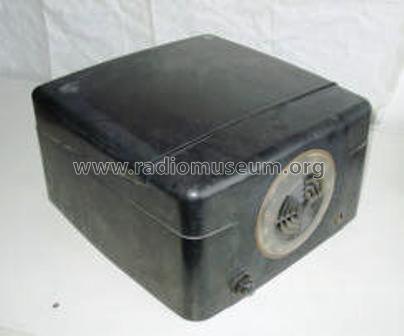

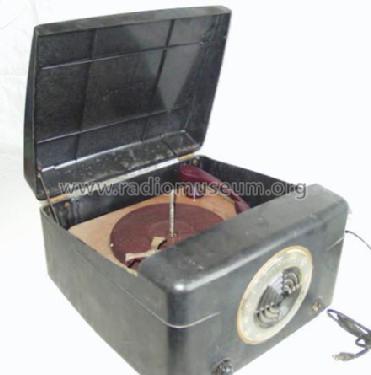

  • Admiral model 5M21 is an AC operated radio-phono combination superheterodyne receiver with loop antenna. Record changer: RC550 78-45-33 RPM. Color=Ebony


  • External source of data
  • Ernst Erb
  • Circuit diagram reference

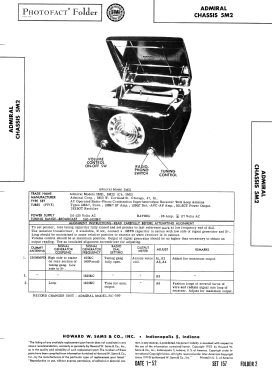

  • Beitman Radio Diagrams Vol. 12, 1952
