• Year
  • 1958 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 208165
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details

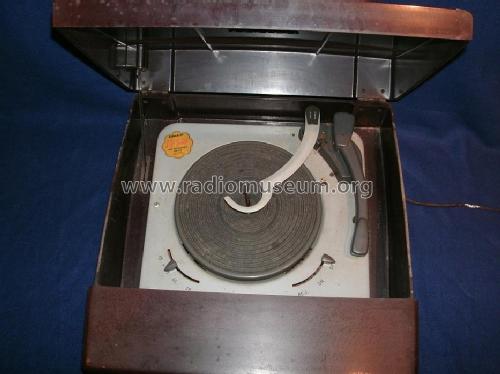

  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 5RP42C Ch= 5RP4A - Admiral brand Continental
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 16.5 x 8.5 x 17 inch / 419 x 216 x 432 mm
  • Notes
  • Photofact is presenting chassis 5RP4 for 5RP41 and 5RP4A for 5RP42 Phonograph on the same folder 6 in set 387 From February 1958. The same is for Beitman volume R-18 from 1958. There are also at least 5RP41B, 5RP41C, 5RP41F, 5RP41G, 5RP42B, 5RP42C, 5RP42F and 5RP42G we know of but there can be even more ... But the schematics don't deal with the suffixes. As we have no knowledge of the differences technically or in appereances, we don't duplicate the model pages - except when we get photos ... The difference between 41 and 42 is the Record Changer RC606A or RC606A-1 for model 5RP41 and Record Changer RC626A or RC626A-1 for model 5RP42.
  • External source of data
  • Mark Skala, USA.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 18, 1958
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
