5X11 Ch= 5X1

5X11 Ch= 5X1; Admiral brand (ID = 109320) Radio

5X11 Ch= 5X1; Admiral brand (ID = 261053) Radio

5X11 Ch= 5X1; Admiral brand (ID = 261054) Radio

5X11 Ch= 5X1; Admiral brand (ID = 193378) Radio
5X11 Ch= 5X1; Admiral brand (ID = 1309099) Radio 5X11 Ch= 5X1; Admiral brand (ID = 1309100) Radio
5X11 Ch= 5X1; Admiral brand (ID = 1309101) Radio 5X11 Ch= 5X1; Admiral brand (ID = 1309796) Radio
Use red slider bar for more.
5X11 Ch= 5X1; Admiral brand (ID = 1309099) Radio
Admiral brand: 5X11 Ch= 5X1 [Radio] ID = 1309099 800x499
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5X11 Ch= 5X1, Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 5X11 Ch= 5X1 - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

Color=Ebony. Super Aeroscope Loop antenna (just an ordinary loop with a fancy name).

Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

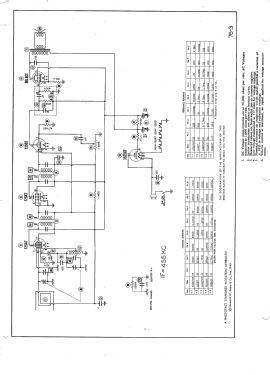

Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950

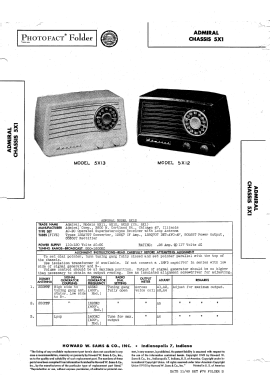

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (set 76, folder 3)
