5X12-N

5X12-N ; Admiral brand (ID = 1309933) Radio

5X12-N ; Admiral brand (ID = 1309934) Radio

5X12-N ; Admiral brand (ID = 1309935) Radio

5X12-N ; Admiral brand (ID = 1309937) Radio
5X12-N ; Admiral brand (ID = 2510571) Radio 5X12-N ; Admiral brand (ID = 2510579) Radio
5X12-N ; Admiral brand (ID = 2510576) Radio 5X12-N ; Admiral brand (ID = 2510578) Radio
5X12-N ; Admiral brand (ID = 2510574) Radio 5X12-N ; Admiral brand (ID = 2510570) Radio
5X12-N ; Admiral brand (ID = 779816) Radio 5X12-N ; Admiral brand (ID = 779812) Radio
5X12-N ; Admiral brand (ID = 779813) Radio 5X12-N ; Admiral brand (ID = 779814) Radio
Use red slider bar for more.
5X12-N ; Admiral brand (ID = 2510571) Radio
Admiral brand: 5X12-N [Radio] ID = 2510571 998x827
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5X12-N, Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6 35Z5
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 5X12-N - Admiral brand Continental
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11.25 x 6.75 x 5.75 inch / 286 x 171 x 146 mm

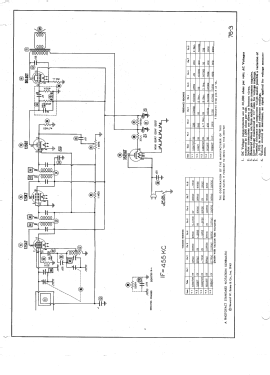

Literature/Schematics (1) Rider's Perpetual, Volume 20 = covering 1950

Model page created by Meyer Rochwerger. See "Data change" for further contributors.



All listed radios etc. from Admiral (brand) Continental Radio & Television Co.; Chicago, IL
Here you find 2910 models, 1180 with images and 2251 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
