• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70431

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6DT8 12AT7 6AU6 6BE6 6BA6 6AU6 6AL5 12AX7 12AX7 6BQ5 6BQ5 5AR4 6AV6 12AX7 6BQ5 6BQ5 5Y3GT

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 16 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 664 Ch= 12B1 + 5T4A - Admiral brand Continental

• Shape
• Console with any shape - in general

• Notes

• The Admiral model 664 is a 17-tube console radio with AM/FM stereo tuner and two 8W mono amplifiers with two 12 inch woofers, two 5.25 inch midranges, and two 3.5 inch tweeters. Has a built in stereo record changer. Comprised of a 12B1 tuner/mono amplifier chassis and a 5T4A mono amplifier chassis.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)

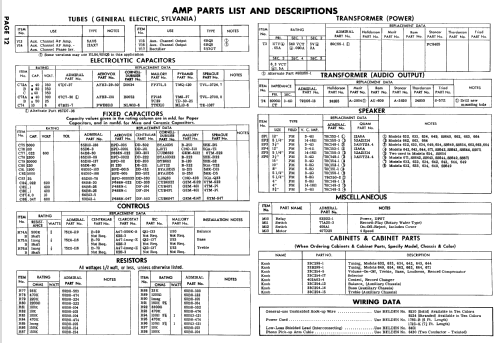

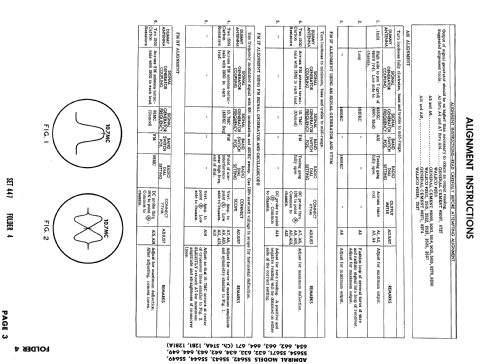

• Photofact Folder, Howard W. SAMS (Date 6-59, Set 447, Folder 4)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
