6A22 Ch= 6A2; Admiral brand (ID = 375494) Radio
Admiral brand: 6A22 Ch= 6A2 [Radio] ID = 375494 600x440
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6A22 Ch= 6A2, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:
Copy from Ebay seller antiqueandluckyfind

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner

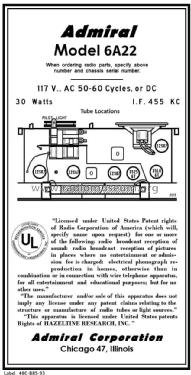

Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 6A22 Ch= 6A2 - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Color= mahogany, also ivory. Alnico speaker. Tuned R.F. stage.
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)

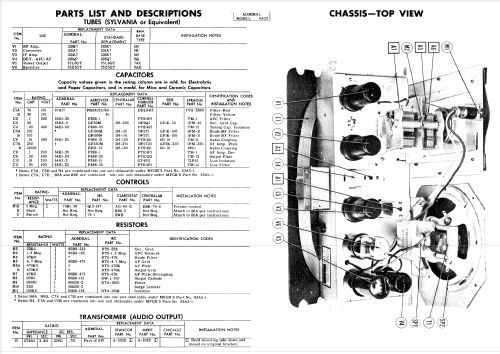

Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 10, 1950
