• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 31305

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

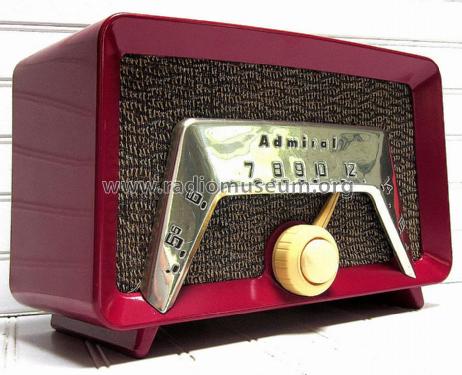

• Model: 6C23 Ch= 6C2 - Admiral brand Continental

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.5 x 8 x 6 inch / 318 x 203 x 152 mm

• Notes
• Color=Ivory

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 23 (last), covering up to 1954

• Mentioned in
• Table Top Radios Vol. 1 Stein 98
