6Q13 Ch= 6Q1; Admiral brand (ID = 926542) Radio

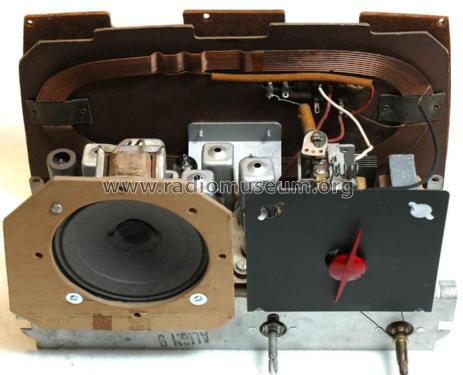

Admiral brand: 6Q13 Ch= 6Q1 [Radio] ID = 926542 933x755
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6Q13 Ch= 6Q1, Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12AT7 12BA6 12BA6 12AL5 12AV6 50C5
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 6Q13 Ch= 6Q1 - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Selenium Rectifier
Color=Ivory
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

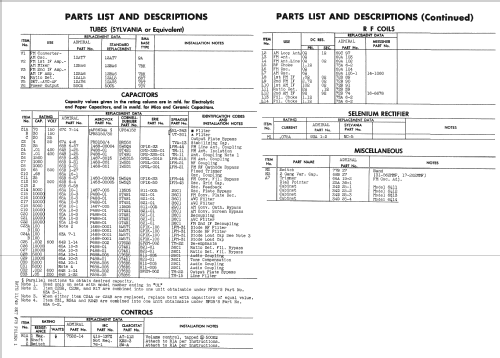

Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 10, 1950
