• Year
  • 1956 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 82391
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 0
  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Batteries / addl. power jack / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 7L14 Ch=7L1 - Admiral brand Continental
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes
  • Admiral model 7L12 is a battery operated portable AM transistorized receiver.
    Accessory: Sun Power Pack.
    Introduced in 1956 as the world's first solar powered radio.
    Colors: Red and turquoise.

    Admiral's first transistor radio.

  • Price in first year of sale
  • 200.00 $

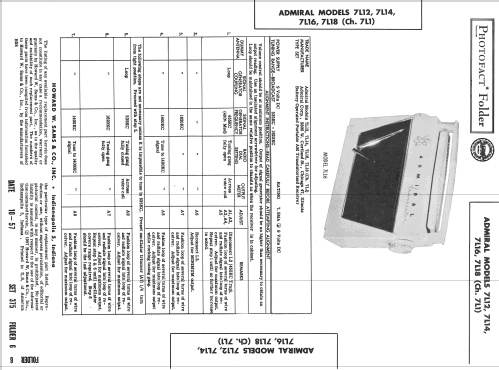

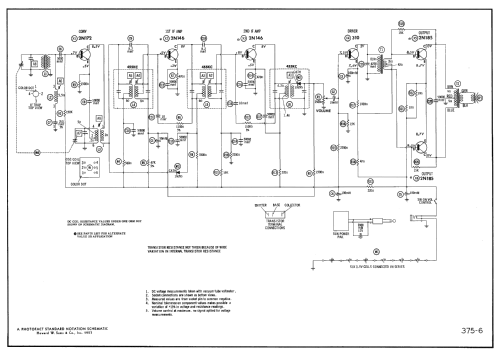

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 17, 1957
  Solar Radio History 2935 KB
  • Documents regarding this model
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
