7L18 Ch=7L1

7L18 Ch=7L1; Admiral brand (ID = 2456200) Radio

7L18 Ch=7L1; Admiral brand (ID = 2456201) Radio

7L18 Ch=7L1; Admiral brand (ID = 2456202) Radio

7L18 Ch=7L1; Admiral brand (ID = 2456203) Radio

7L18 Ch=7L1; Admiral brand (ID = 2456204) Radio

7L18 Ch=7L1; Admiral brand (ID = 128238) Radio

7L18 Ch=7L1; Admiral brand (ID = 128239) Radio

7L18 Ch=7L1; Admiral brand (ID = 1156112) Radio

7L18 Ch=7L1; Admiral brand (ID = 1156113) Radio
7L18 Ch=7L1; Admiral brand (ID = 2105126) Radio 7L18 Ch=7L1; Admiral brand (ID = 2105127) Radio
7L18 Ch=7L1; Admiral brand (ID = 2105128) Radio 7L18 Ch=7L1; Admiral brand (ID = 2105129) Radio
7L18 Ch=7L1; Admiral brand (ID = 2105130) Radio 7L18 Ch=7L1; Admiral brand (ID = 2105131) Radio
7L18 Ch=7L1; Admiral brand (ID = 128240) Radio 7L18 Ch=7L1; Admiral brand (ID = 2106522) Radio
7L18 Ch=7L1; Admiral brand (ID = 2106523) Radio
Use red slider bar for more.
7L18 Ch=7L1; Admiral brand (ID = 2105126) Radio
Admiral brand: 7L18 Ch=7L1 [Radio] ID = 2105126 722x545

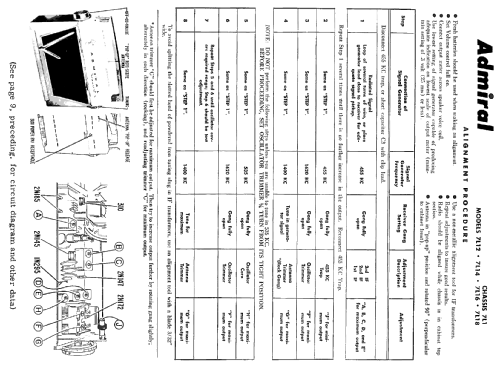

Select picture or schematic to display from thumbnails on the right and click for download.
For model 7L18 Ch=7L1, Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes or or 310 or or or
Semiconductors (the count is only for transistors) 6: 2N172 2N146 2N147 2N146 2N145 2N132 2N185 2N131 2N185 2N131
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Batteries / addl. power jack / D: 6 x 1.5 or accessory Sun Power Pack Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 7L18 Ch=7L1 - Admiral brand Continental
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

Admiral model 7L18 is a battery operated portable AM transistorized receiver.


Price in first year of sale 250.00 $
Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 375 Folder 6 dated 10-57)

Model page created by Egon Penker. See "Data change" for further contributors.



All listed radios etc. from Admiral (brand) Continental Radio & Television Co.; Chicago, IL
