For model 7C64 Ch= 8B1, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:
Copy from Ebay seller edropandsell

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1949 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BA6 6SB7Y 6BA6 6AU6 6SJ7 6AL5 6V6 5Y3
Main principle Superhet with RF-stage; ZF/IF 10700/455 kHz
Wave bands Broadcast (BC) and FM or UHF.

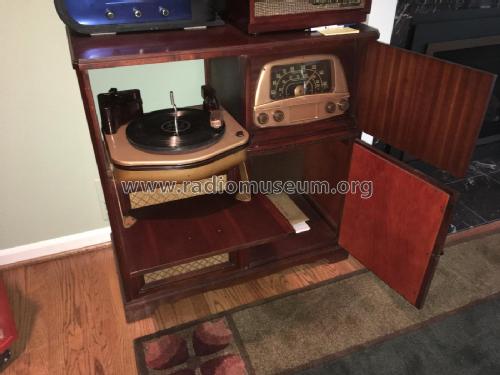

Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 7C64 Ch= 8B1 - Admiral brand Continental
Notes Built in loop antenna for BC and FM .
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
