B121F1 Ch= 17G1

B121F1 Ch= 17G1; Admiral brand (ID = 2581984) Television

B121F1 Ch= 17G1; Admiral brand (ID = 2581985) Television

B121F1 Ch= 17G1; Admiral brand (ID = 2581986) Television

B121F1 Ch= 17G1; Admiral brand (ID = 2581988) Television

B121F1 Ch= 17G1; Admiral brand (ID = 2581989) Television

B121F1 Ch= 17G1; Admiral brand (ID = 2581990) Television

B121F1 Ch= 17G1; Admiral brand (ID = 2581991) Television

B121F1 Ch= 17G1; Admiral brand (ID = 2581992) Television

B121F1 Ch= 17G1; Admiral brand (ID = 2581993) Television

B121F1 Ch= 17G1; Admiral brand (ID = 2581994) Television
Use red slider bar for more.
B121F1 Ch= 17G1; Admiral brand (ID = 2581984) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1958 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: 6BC8 6CG8 6BZ6 6BZ6 6CB6 6AW8A 6DT6 6AQ5 6BU8 6CG7 6DB5 6CG7 6CD6GA 6AU4GTA 1B3GT 5V3 21CEP4A
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: B121F1 Ch= 17G1 - Admiral brand Continental
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Admiral model B121F1 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 17G1, VHF tuner 94E144-25 or 94E144-15 and picture tube 21CEP4A.

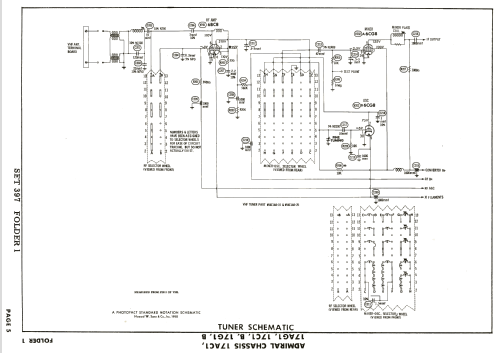

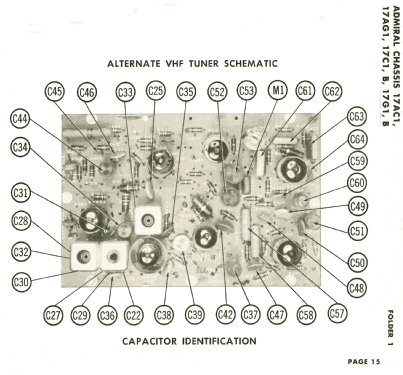

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 395 Folder 1 dated 5-58)

Model page created by Egon Penker. See "Data change" for further contributors.
