C21E13 Ch= 16E1; Admiral brand (ID = 2570258) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1958 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 24: 4BC8 5CG8 3BZ6 3BZ6 3CB6 6AW8A 3BU8 3DT6 12CU5 7AU7 12DB5 6CG7 25CD6GB 19AU4GTA 1B3GT 21CEP4A 6AU6 6AU8 6BN6 6AL5 6BJ7 6CM7 6CM7 6X4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: C21E13 Ch= 16E1 - Admiral brand Continental
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

Admiral model C21E13 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 16E1, VHF tuner 94E144-13, remote control and picture tube 21CEP4A.

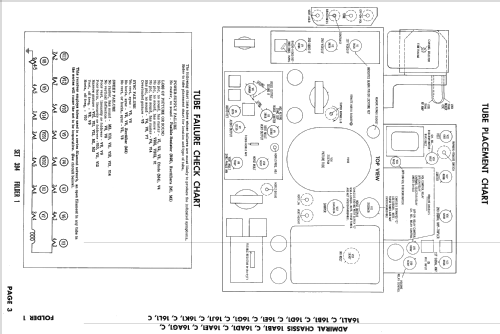

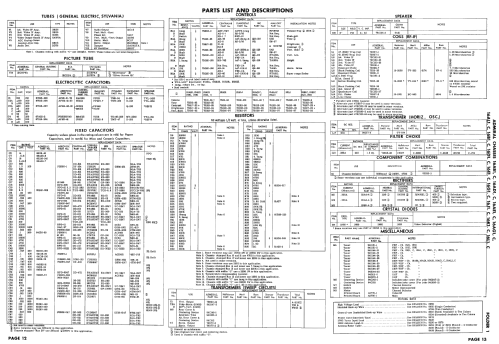

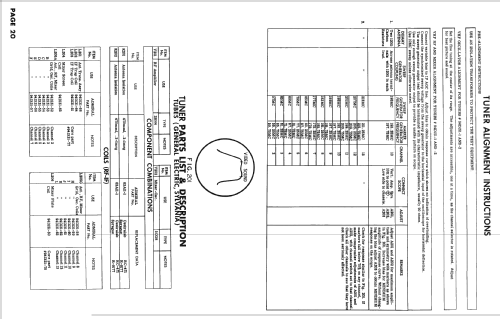

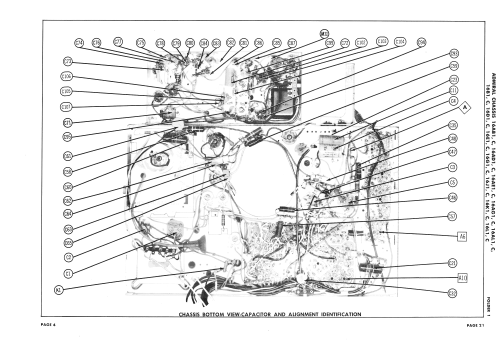

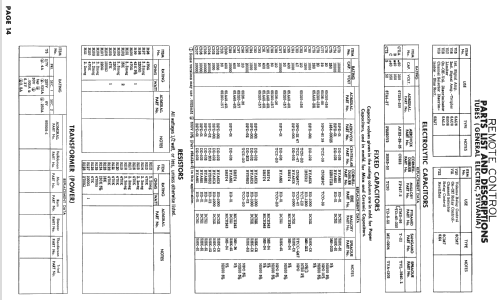

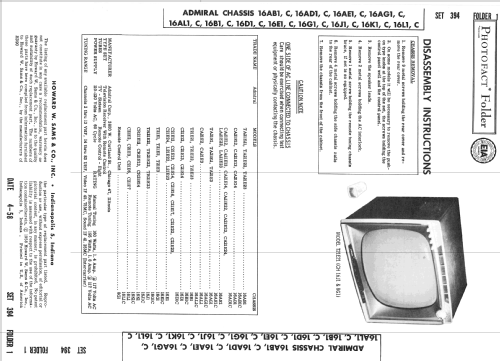

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 394 Folder 1 dated 4-58)

Model page created by Dirk Taekels. See "Data change" for further contributors.
