• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 311647

• • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 4BZ7 5J6 3CB6 3CB6 5AM8 5AN8 3AU6 3AL5 12AC5 6CG7 6S4A 6CG7 12DQ6 12AX4GTA 1B3GT 21ATP4B

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: C23A27B Ch= 17Z3DFB - Admiral brand Continental

• Shape
• Tablemodel, with any shape - general.

• Notes

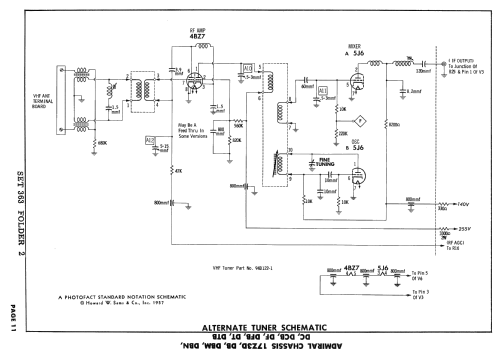

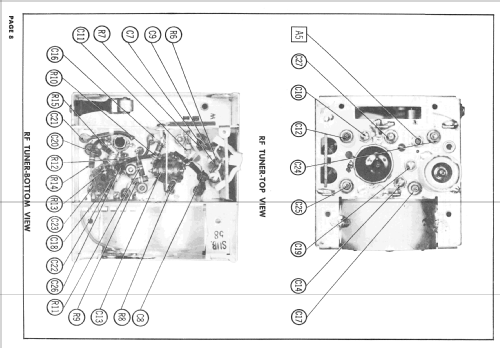

• Admiral model C23A27B is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 17Z3DFB, VHF tuner 94122-1 and picture tube 21ATP4B.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 363 Folder 2 Dated 57-7)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
