• Year
  • 1959 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 145559
    • alternative name: Continental Radio & TV

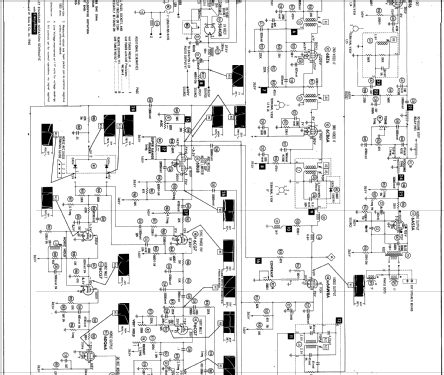

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 17
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • from Radiomuseum.org
  • Model: C24UM34 Ch= 20UG6 - Admiral brand Continental
  • Notes
  • Channels 2 thru 13 VHF, 14 thru 83 UHF. Sams photofact set 473 folder 1 date 2-60 features the Admiral models C24M21, C24M22, C24M23, C24M32, C24M33, C24M34, L24M22, L24M27, L24M31, L24M34, L24M37, T24M21, T24M22, T24M23 with chassis 20G6, the models CS24M52, CS24M57, LS24M52, LS24M53, LS24M54, TS24M52, TS24M53 with chassis 20M6, the models C24UM21, C24UM22, C24UM23, C24UM32, C24UM33, C24UM34, L24UM22, L24UM27, L24UM31, L24UM34, L24UM37, T24UM21, T24UM22, T24UM23 with chassis 20UG6 as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
