Imperial 5BW

Imperial 5BW; Admiral of Australia (ID = 1962686) Radio
Imperial 5BW; Admiral of Australia (ID = 1962684) Radio
Use red slider bar for more.
Imperial 5BW; Admiral of Australia (ID = 1962684) Radio

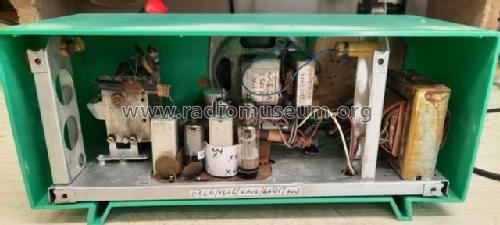

Admiral of Australia: Imperial 5BW [Radio] ID = 1962684 782x430
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial 5BW, Admiral of Australia, Bankstown:
Silicon Chip September 2006

Country:  Australia
Manufacturer / Brand:  Admiral of Australia, Bankstown
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AV6 6AQ5 6X4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Imperial 5BW - Admiral of Australia,
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 14 x 6.25 x 5.75 inch / 356 x 159 x 146 mm
Notes

This radio was available in four colours: Red, Cream, Turquoise and Green.

Price in first year of sale 26.25 AUS £
Literature/Schematics (1) J.R. Publications Radio Service Handbook (Group 1, September 1966, Page A156.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
