For model LS23B6N Ch= 20SY4H and 3D1B or 3D1C, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:

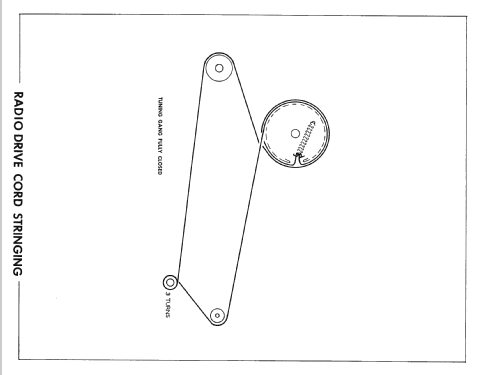

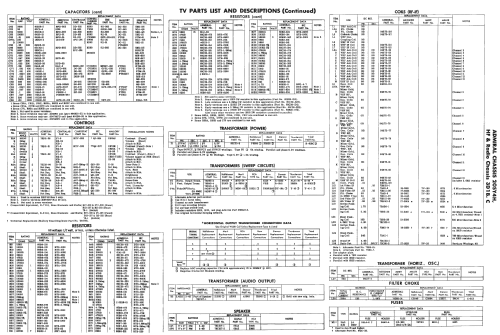

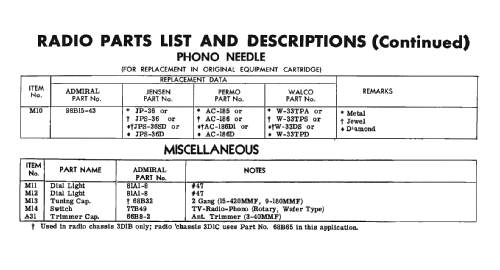

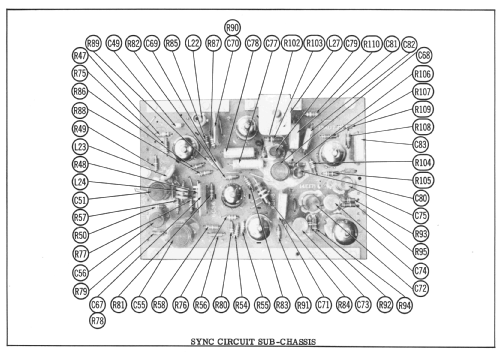

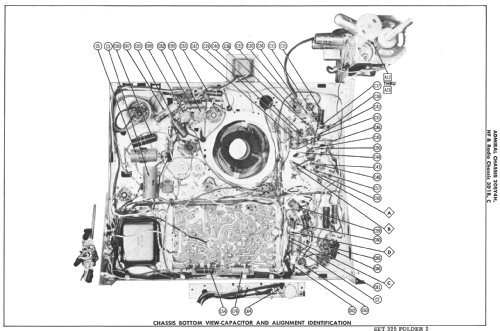

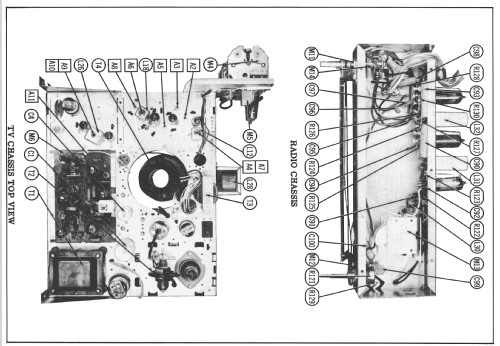

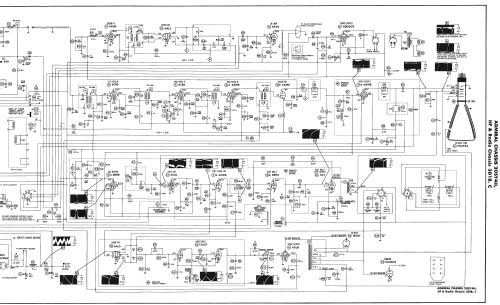

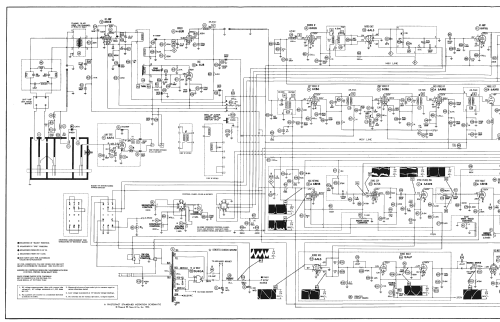

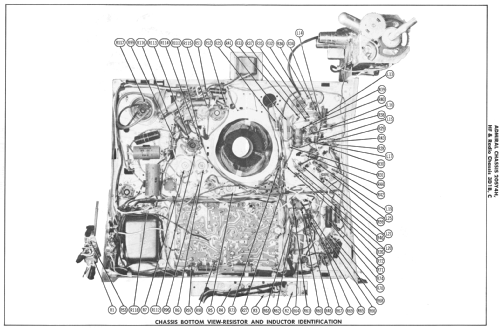

Picture from service manual

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1956 ? Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 24: 6AF4 6BZ8 6U8 6CB6 6CB6 6AM8 6AW8 6BH8 6AV6 6AL5 6AV6 6DG6GT 6CS6 6S4 6AL5 12AU7 6CU6 6AU4GT 1B3GT 5U4GA 21ALP4A 6BE6 6BA6 6AV6
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: LS23B6N Ch= 20SY4H and 3D1B or 3D1C - Admiral brand Continental
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes

Admiral Model LS23B6N is a 21" b/w TV -Radio-Phono Combination Receiver with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 20SY4H and Radio chassis 3D1B or 3D1C, VHF-UHF tuner 94E75-19 and picture tube 21ALP4A.



Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 325 Folder 2 dated 8-56)
