• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1952 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 31447

• • alternative name: Continental Radio & TV

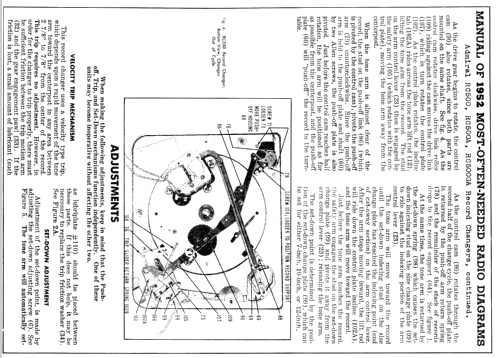

Click on the schematic thumbnail to request the schematic as a free document.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org

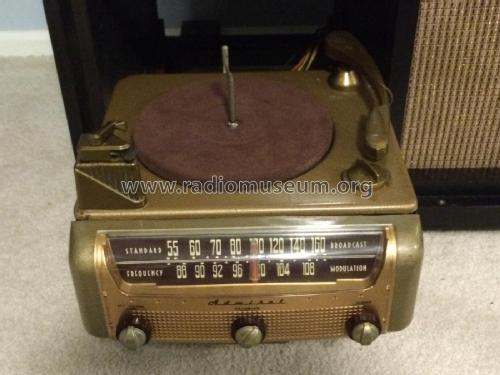

• Model: RC550 - Admiral brand Continental

• Notes

• The Admiral model RC550 series record changer is a modification of the RC500.
  Record changer 78-45-33 RPM.



• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 21, Copyright 1950

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 12, 1952

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 185, folder 2, dated 11-52)
