Burlingame T23B6 Ch= 20Y4L

Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207826) Television

Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207827) Television

Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207828) Television

Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207829) Television

Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207830) Television

Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207831) Television

Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207832) Television

Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207833) Television

Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207834) Television

Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207835) Television
Use red slider bar for more.
Burlingame T23B6 Ch= 20Y4L; Admiral brand (ID = 2207826) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1955 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: 6BC8 6J6 6BZ6 6BZ6 6AM8 6AW8 6BH8 6AU6 6AL5 6AV6 6BF5 6CS6 6S4A 6AL5 12AU7 6CU6 6AU4GTA 1B3GT 5U4GB 21ALP4A
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Burlingame T23B6 Ch= 20Y4L - Admiral brand Continental
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

THE ADMIRAL model T23B6 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner 94D92-7, chassis 20Y4L and picture tube 21ALP4A.

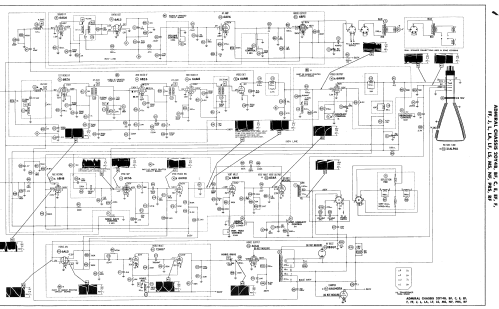

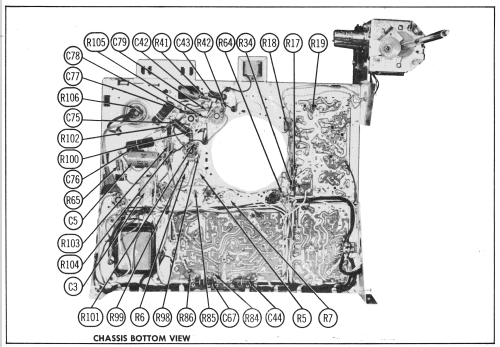

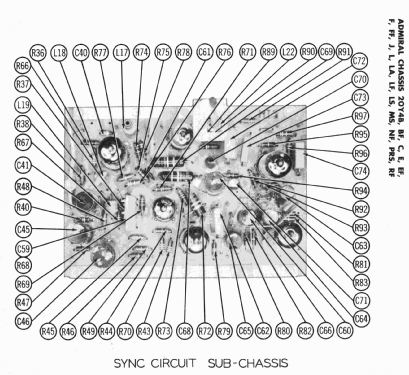

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 316 Folder 2 Dated 5-56)
Literature/Schematics (2) - - Manufacturers Literature (Admiral Service Data No. ST566-1, June 1955.)

Model page created by Dirk Taekels. See "Data change" for further contributors.
