Y2013 "The Comet, Super 7" Ch=7V1A

Y2013 'The Comet, Super 7' Ch=7V1A; Admiral brand (ID = 110953) Radio

Y2013 'The Comet, Super 7' Ch=7V1A; Admiral brand (ID = 110954) Radio
Y2013 'The Comet, Super 7' Ch=7V1A; Admiral brand (ID = 934844) Radio
Use red slider bar for more.
Y2013 'The Comet, Super 7' Ch=7V1A; Admiral brand (ID = 934844) Radio
Admiral brand: Y2013 "The Comet, Super 7" Ch=7V1A [Radio] ID = 934844 933x931
Select picture or schematic to display from thumbnails on the right and click for download.
For model Y2013 "The Comet, Super 7" Ch=7V1A, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:
From Operating Instructions.

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N411 2N410 2N410 2N406 2N406 2N406 2N406 1N295 TA141
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.08 cm = 2 inch
Power out
from Radiomuseum.org Model: Y2013 "The Comet, Super 7" Ch=7V1A - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.

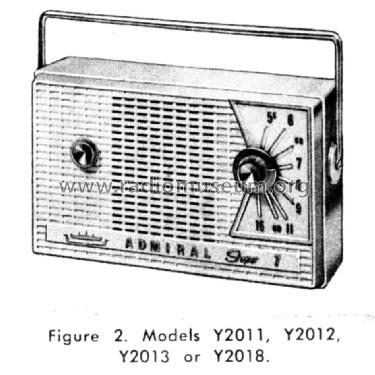

Notes Color: white. Handle and earphone jack.

SAMS Photofact date 12-60, set 510, folder 4 shows a schematic for the Admiral models: Y2009 (color black) with chassis 7V1 ("The Comet, Super 7"); Y2011 (gray), Y2012 (coral) and Y2013 (white) with chassis 7V1A ("The Comet, Super 7") and models Y2023 (white), Y2027 (beige) and Y2028 (green) with chassis 7V1B ("The Starliner, Super 7"). They are battery operated transistorized portable AM receivers and differ within same chassis only by color.

For more information on the Y-models including colors see this link.
Circuit diagram reference Beitman Radio Diagrams Vol. 20, 1960
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-60, set 510, folder 4, title copy)

Model page created by Trev Levick. See "Data change" for further contributors.
