TS1011AL Ch= 14UY3B
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 270993
-
- alternative name: Continental Radio & TV
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- from Radiomuseum.org
- Model: TS1011AL Ch= 14UY3B - Admiral brand Continental
- Notes
-
The Admiral TS1011AL is a 10" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 14UY3B and picture tube 10ABP4.
- Mentioned in

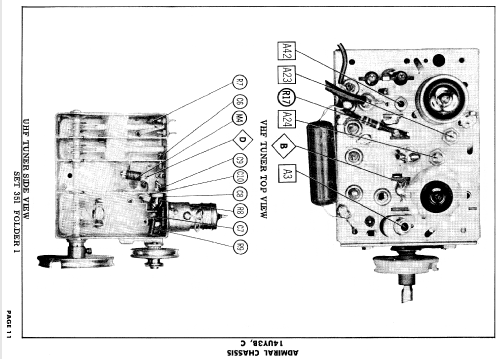

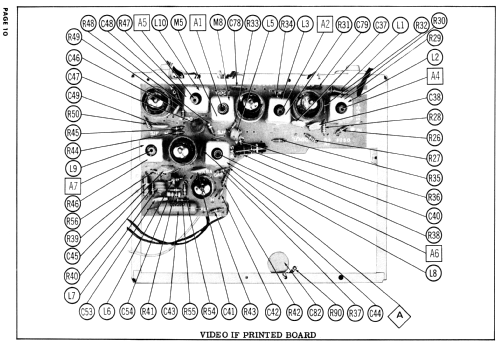

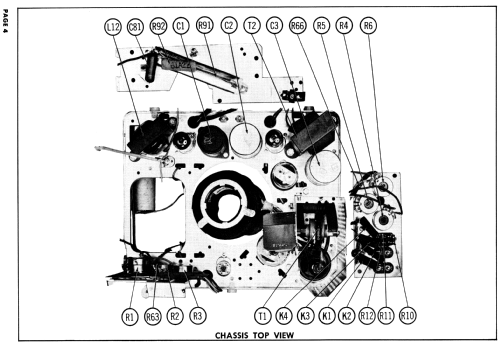

- Photofact Folder, Howard W. SAMS (Set 351, Folder 1, Date 3-57)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 383 Folder 5 Production Changes Bulletin 196 dated 1-58)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
