TS107AL Ch= 14YP3B
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- 1956 ?
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- alternative name: Continental Radio & TV

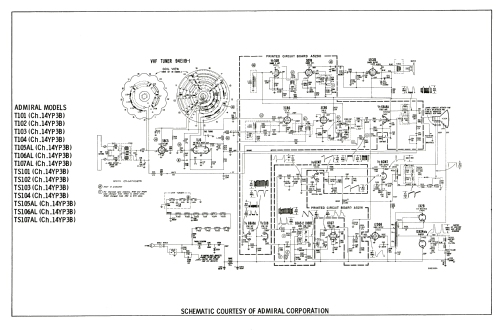

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: TS107AL Ch= 14YP3B - Admiral brand Continental
The ADMIRAL model TS107AL is a b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with a VHF-tuner and chassis 14YP3B. 2x selenium rectifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 333 Folder 18-S dated 10-56)
- Model page created by Dirk Taekels. See "Data change" for further contributors.
