Y2068 Super 7 Ch= 7A2

Y2068 Super 7 Ch= 7A2; Admiral brand (ID = 142574) Radio
Y2068 Super 7 Ch= 7A2; Admiral brand (ID = 2330623) Radio Y2068 Super 7 Ch= 7A2; Admiral brand (ID = 2330626) Radio
Y2068 Super 7 Ch= 7A2; Admiral brand (ID = 2330624) Radio Y2068 Super 7 Ch= 7A2; Admiral brand (ID = 2330625) Radio
Y2068 Super 7 Ch= 7A2; Admiral brand (ID = 479450) Radio
Use red slider bar for more.
Y2068 Super 7 Ch= 7A2; Admiral brand (ID = 2330623) Radio
Admiral brand: Y2068 Super 7 Ch= 7A2 [Radio] ID = 2330623 1362x1992
Select picture or schematic to display from thumbnails on the right and click for download.
For model Y2068 Super 7 Ch= 7A2, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:

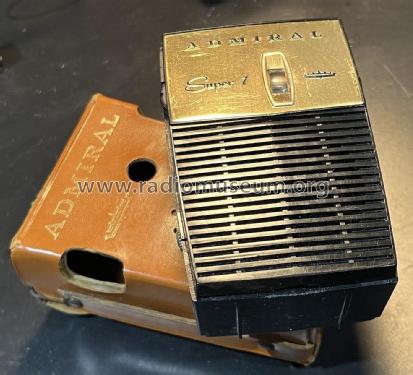

My Photo Taken By Me on 4Dec2018

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: R335 R336 R337 R338 R339 R341 R340 1N295
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out
from Radiomuseum.org Model: Y2068 Super 7 Ch= 7A2 - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.625 x 4.125 x 1.5 inch / 67 x 105 x 38 mm
Notes The Admiral transistor portable AM receivers model Y2061, Y2063, Y2067 and Y2068 share the same chassis 7A2. They differ only in color. Model Y2067 = Sahara beige. The models have an earphone jack.

For more information on the Y-models see this link.
Source of data Beitman Radio Diagrams, Vol. 21, 1961
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 6-61, set 536, folder 4, title copy)
Literature/Schematics (2) Photofact TSM Transistor Radio Series SAMS (TSM-11, April 1962, pages 11-16)
Literature/Schematics (3) Collector's Guide To TrR1 Bunis trans.94 (1996, page 15)

Model page created by Egon Penker. See "Data change" for further contributors.
