• Year
  • 1962 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 89050
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

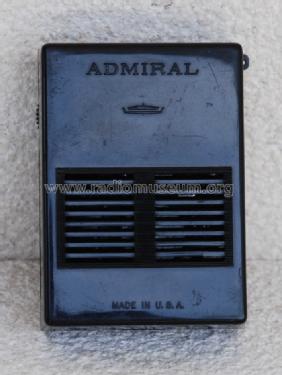

  • Model: Y2232 Ch= 6M3C - Admiral brand Continental
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 63 x 86 x 26 mm / 2.5 x 3.4 x 1 inch
  • Net weight (2.2 lb = 1 kg)
  • 0.120 kg / 0 lb 4.2 oz (0.264 lb)
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 23, 1963
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
