• Year
  • 1960 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 85045
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

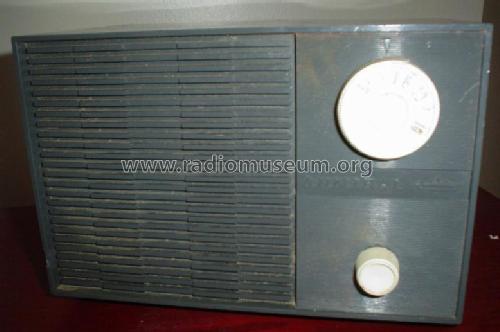

  • Model: Y2999 "Avalon" Ch= 4P3 - Admiral brand Continental
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
