Y3058 "Duncan" Ch= 5T5

Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 142415) Radio

Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 741383) Radio

Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 741384) Radio

Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 741386) Radio

Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 741389) Radio
Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 2489002) Radio Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 2489001) Radio
Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 1523263) Radio Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 480890) Radio
Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 1523264) Radio Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 1523266) Radio
Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 1523267) Radio Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 1523268) Radio
Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 2490235) Radio
Use red slider bar for more.
Y3058 'Duncan' Ch= 5T5; Admiral brand (ID = 2489002) Radio
Admiral brand: Y3058 "Duncan" Ch= 5T5 [Radio] ID = 2489002 1400x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model Y3058 'Duncan' Ch= 5T5, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:
better than the pic you have...

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Y3058 "Duncan" Ch= 5T5 - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)

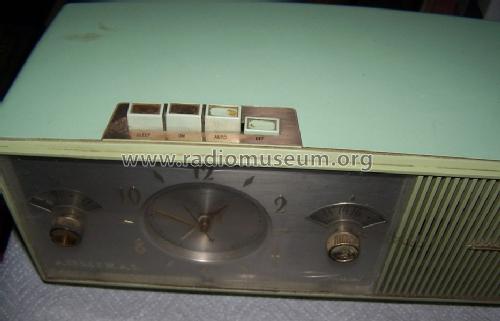

Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes SAMS Photofact date 12-61, set 557, folder 3 is documenting the Admiral models Duncan Y3051 (color = starlight black), Y3053 (dove white) and Y3058 (Nassau green). They use the same chassis, 5T5 and the same case - in different colors. For more information on the Y-models including colors see this link.
Source of data Beitman Radio Diagrams, Vol. 21, 1961
Mentioned in Collector's Guide to Antique Radios (6th edition)

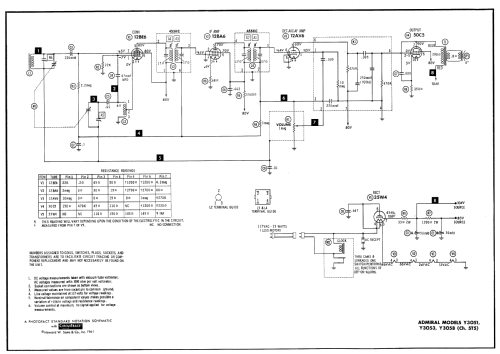

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (date 12-61, set 557, folder 3, title copy)

Model page created by Egon Penker. See "Data change" for further contributors.
