- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 361967
-
- alternative name: Continental Radio & TV
Pictures and Information from Worth Point
Pictures and Information from Worth Point
Pictures and Information from Worth Point
Pictures and Information from Worth Point
Pictures and Information from Worth Point
Pictures and Information from Worth Point
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 9 inch = 22.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

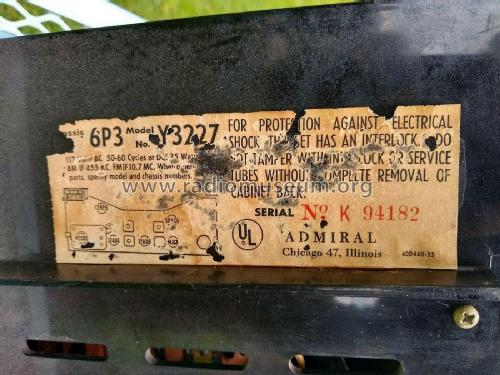

- Model: Y3227 Ch= 6P3 - Admiral brand Continental
- Shape

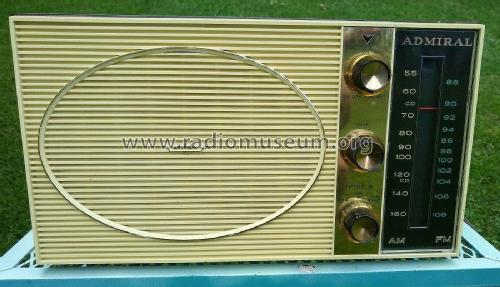

- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14.5 x 8 x 9 inch / 368 x 203 x 229 mm
- Notes
-

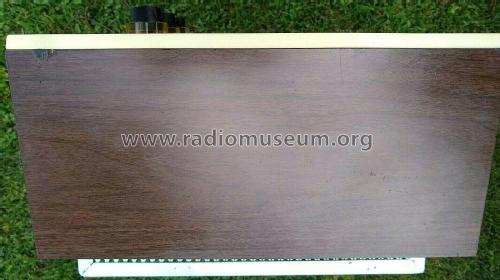

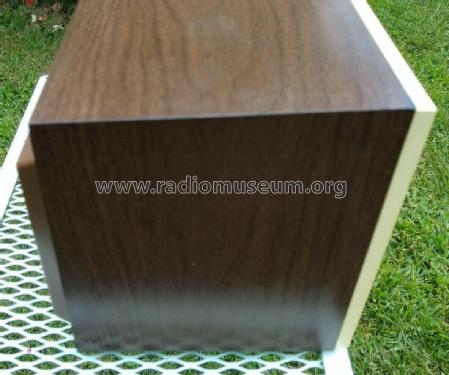

Wood Grain Finish on top and sides over plastic.
FM AFC-Automatic Frequency Control.
Internal Ferrite Rod Antenna.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 634, Folder 34, June 1963)
- Author
- Model page created by Glen Orriss. See "Data change" for further contributors.
