Y4499 Ch= 7N2A + 3PA7
Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Admiral (brand) Continental Radio & Television Co.; Chicago, IL
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 89108
-
- alternative name: Continental Radio & TV

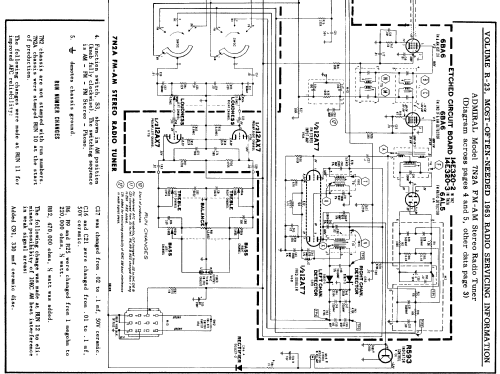

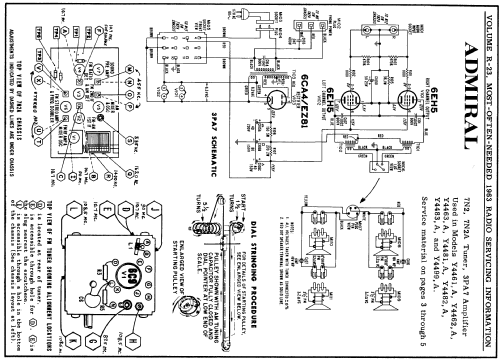

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Number of Transistors
- 1
- Semiconductors
- R593
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 4 Loudspeakers
- from Radiomuseum.org
- Model: Y4499 Ch= 7N2A + 3PA7 - Admiral brand Continental
- Notes
- Chassis 7N2A is an FM-AM Stereo Radio Tuner with 3PA7 Amplifier and power supply.
Used in Models Y4461,A, Y4462,A, Y4463,A, Y4481,A, Y4482,A, Y4483,A, and Y4499,A.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 23, 1963
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
