• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93568

• • alternative name: Continental Radio & TV

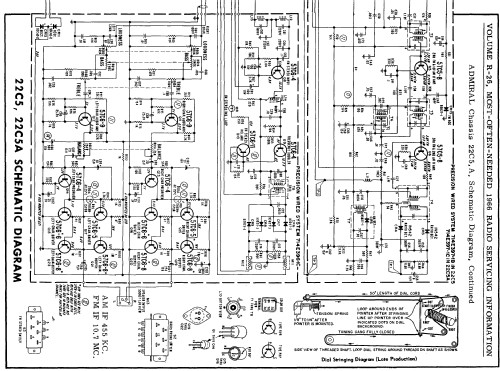

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 3 Volt

• Loudspeaker
• 4 Loudspeakers

• from Radiomuseum.org
• Model: YG8002M Ch= 20C5 - Admiral brand Continental

• Notes
• Chassis 20C5 is an AM/FM Tuner
  Color=Mahogany

• Circuit diagram reference

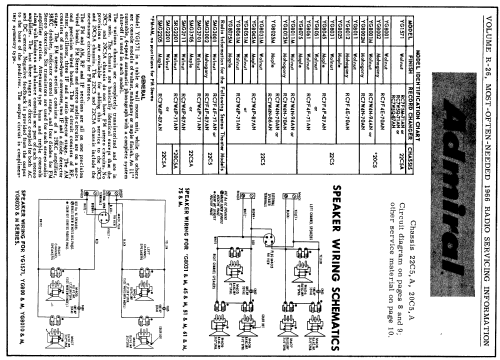

• Beitman Radio Diagrams Vol. 26, 1966

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
