For model YH371GP Eight Transistor Ch= 8C4, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:
By courtesy of Sarah Lowrey, .transistor.org

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1.5 (AA) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: YH371GP Eight Transistor Ch= 8C4 - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 3.625 x 2.375 x 1.25 inch / 92 x 60 x 32 mm
Notes

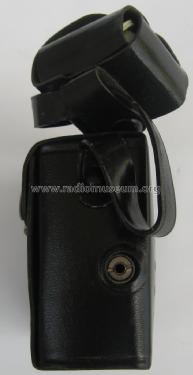

The Admiral YH371GP is a battery operated 8 transistor portable AM radio.  Has earphone jack that disconnects the speaker for private listening.  Uses Qty(2) 1.5V "AA" batteries.

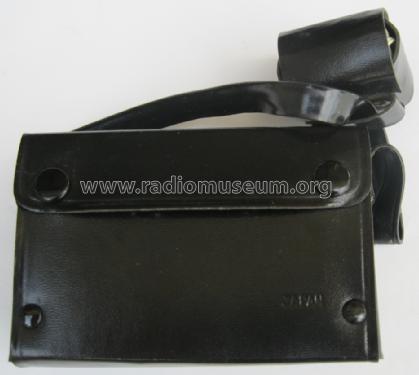

The "GP" in the model number indicates a "Gift Pack", which included an earphone, a carrying case and batteries.

Made in Japan

Mentioned in -- Original prospect or advert
Literature/Schematics (1) Photofact TSM Transistor Radio Series SAMS (TSM-74)

Model page created by Peter Hoddow. See "Data change" for further contributors.
