Ten Transistor YK211GP (Ch= 10A3)

Ten Transistor YK211GP ; Admiral brand (ID = 205384) Radio
Ten Transistor YK211GP ; Admiral brand (ID = 2434439) Radio Ten Transistor YK211GP ; Admiral brand (ID = 2434440) Radio
Use red slider bar for more.

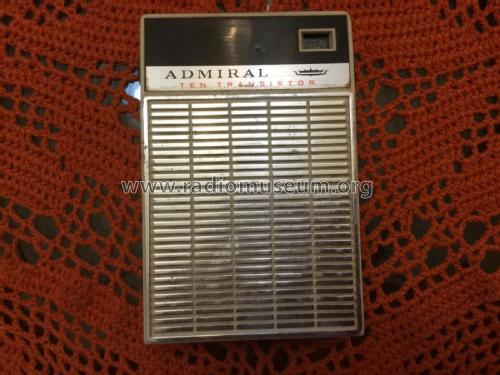

Ten Transistor YK211GP ; Admiral brand (ID = 2434439) Radio
Admiral brand: Ten Transistor YK211GP [Radio] ID = 2434439 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ten Transistor YK211GP (Ch= 10A3), Admiral (brand) Continental Radio & Television Co.; Chicago, IL:
ebay.com_223695348697 seller ilonmitchel0

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Ten Transistor YK211GP - Admiral brand Continental
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes Shirtpocket transistor.
Circuit diagram reference Beitman Radio Diagrams Vol. 27, 1967-69 (last vol.)

Model page created by Egon Penker. See "Data change" for further contributors.
