Frequency Synthesizer 3310

Frequency Synthesizer 3310; Adret Électronique; (ID = 1218662) Equipment

Frequency Synthesizer 3310; Adret Électronique; (ID = 1218277) Equipment

Frequency Synthesizer 3310; Adret Électronique; (ID = 1218278) Equipment

Frequency Synthesizer 3310; Adret Électronique; (ID = 1218279) Equipment

Frequency Synthesizer 3310; Adret Électronique; (ID = 1218280) Equipment

Frequency Synthesizer 3310; Adret Électronique; (ID = 1218281) Equipment

Frequency Synthesizer 3310; Adret Électronique; (ID = 1218282) Equipment

Frequency Synthesizer 3310; Adret Électronique; (ID = 1218283) Equipment

Frequency Synthesizer 3310; Adret Électronique; (ID = 1218284) Equipment

Frequency Synthesizer 3310; Adret Électronique; (ID = 1218285) Equipment
Frequency Synthesizer 3310; Adret Électronique; (ID = 1209245) Equipment Frequency Synthesizer 3310; Adret Électronique; (ID = 1209246) Equipment
Frequency Synthesizer 3310; Adret Électronique; (ID = 1209247) Equipment Frequency Synthesizer 3310; Adret Électronique; (ID = 1209248) Equipment
Frequency Synthesizer 3310; Adret Électronique; (ID = 1209249) Equipment Frequency Synthesizer 3310; Adret Électronique; (ID = 1209250) Equipment
Frequency Synthesizer 3310; Adret Électronique; (ID = 1209253) Equipment
Use red slider bar for more.
Frequency Synthesizer 3310; Adret Électronique; (ID = 1209245) Equipment
Adret Électronique;: Frequency Synthesizer 3310 [Equipment] ID = 1209245 933x463
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frequency Synthesizer 3310, Adret Électronique; Trappes:
Model Gesamtansicht

Country:  France
Manufacturer / Brand:  Adret Électronique; Trappes
Year: 1977 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Frequency Synthesizer 3310 - Adret Électronique; Trappes
Material Metal case
Dimensions (WHD) 440 x 132 x 450 mm / 17.3 x 5.2 x 17.7 inch
Notes The frequency synthesizer is a fully programmable instrument particularly suited to automatic test systems.
The output frequency 300 Hz to 50 MHz is determined with 0.1 Hz resolution by nine rotary switches, or programmed by parallel BCD codes in TTL position logic.
The output level ranges from +20 dBm to -79.9 dBm (50 Ohm) with +/- 0.3 dB level flatness within the entire frequency range. This level is controlled by three rotary switches providing 0.1 dB resolution, or programmed by parallel BCD codes.
Two ALC time constants are available, permitting thus to reduce the output level settling time to 3 ms for frequencies higher than 10 kHz.
Stability: 5*10exp-9 per day after one month operation.
Reference Oscillator Output: 10 MHz 0.5 Vrms/50 Ohm
Power Consumption: 30 W
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)

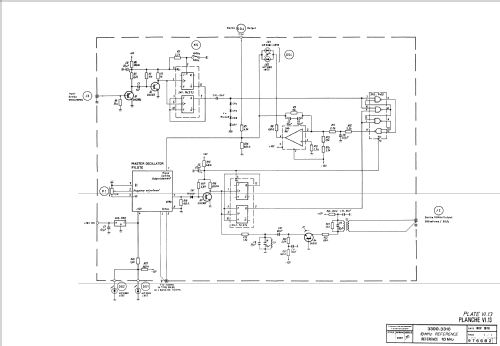

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Siegfried Fahrner. See "Data change" for further contributors.
