8

8; AEL A.E.L.; (ID = 1431639) Ampl/Mixer
8; AEL A.E.L.; (ID = 1430891) Ampl/Mixer
Use red slider bar for more.
8; AEL A.E.L.; (ID = 1430891) Ampl/Mixer
AEL A.E.L.;: 8 [Ampl/Mixer] ID = 1430891 933x608

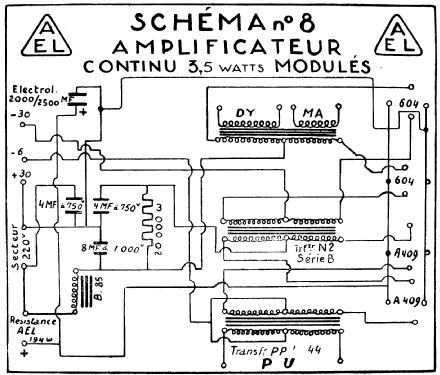

Select picture or schematic to display from thumbnails on the right and click for download.
For model 8, AEL (A.E.L.); Marcinelle:
Q=catalogue AEL

Country:  Belgium
Manufacturer / Brand:  AEL (A.E.L.); Marcinelle
Year: 1935 Category: Audio Amplifier or -mixer
Valves / Tubes 4: A409 A409 604 604
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Direct Current supply (DC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: 8 - AEL A.E.L.; Marcinelle
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 210 x 135 x 232 mm / 8.3 x 5.3 x 9.1 inch
Price in first year of sale 1'930.00 BFr
Mentioned in -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from AEL (A.E.L.); Marcinelle
Here you find 6 models, 5 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
