Raven

Aerodyne (Brand), Hustler Simpson & Webb Ltd., & Aerodyne Radio, Ltd.; London

Data
Forum
Pictures
Collections

  • Year
  • 1934 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 128395

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration; 2 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Details
  • Radio with other functions
  • Power type and voltage
  • Storage and/or dry batteries / 2 & 4,5 & 120 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic. / Ø 12 inch = 30.5 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

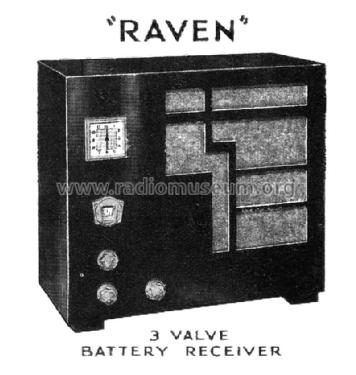

  • Model: Raven - Aerodyne Brand, Hustler
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • Wavelengths 200 - 500 m and 900 - 2000 m. Metal chassis finished in grey cellulose. Balanced armature speaker with a special 12-inch moulded cone.

    Chrome finish 30-hour spring clock.

    Choice of ebonised cabinet with chromium fittings or figured oak with brown bakelite fittings.

  • Price in first year of sale
  • 5.60 GBP
  • Source of data
  • -- Schematic
  • Mentioned in

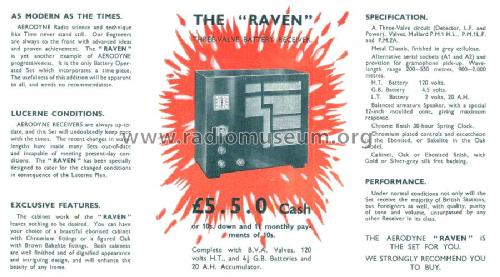

  • -- Original prospect or advert
  • Literature/Schematics (1)
  • Paul Stenning CD Vol 3
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
