Aerodyn Special

Aerodyn Special ; Aerodyn Company; New (ID = 1807154) Radio Aerodyn Special ; Aerodyn Company; New (ID = 1807155) Radio
Aerodyn Special ; Aerodyn Company; New (ID = 1807156) Radio Aerodyn Special ; Aerodyn Company; New (ID = 1302809) Radio
Aerodyn Special ; Aerodyn Company; New (ID = 1807157) Radio Aerodyn Special ; Aerodyn Company; New (ID = 1807158) Radio
Aerodyn Special ; Aerodyn Company; New (ID = 1807159) Radio Aerodyn Special ; Aerodyn Company; New (ID = 1807160) Radio

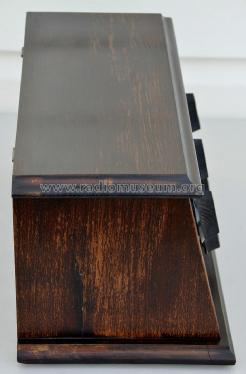

Aerodyn Special ; Aerodyn Company; New (ID = 1807161) Radio Aerodyn Special ; Aerodyn Company; New (ID = 1807164) Radio
Use red slider bar for more.
Aerodyn Special ; Aerodyn Company; New (ID = 1807154) Radio
Aerodyn Company; New: Aerodyn Special [Radio] ID = 1807154 1400x819
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aerodyn Special, Aerodyn Company; New York City (NY):
eBay item number:191538101293

Country:  United States of America (USA)
Manufacturer / Brand:  Aerodyn Company; New York City (NY)
Year: 1926 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UX201A UX201A UX201A UX201A UX201A
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Aerodyn Special - Aerodyn Company; New York City

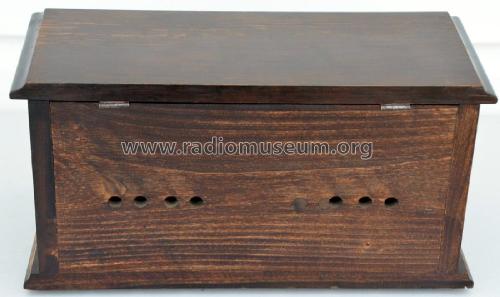

Material Wooden case

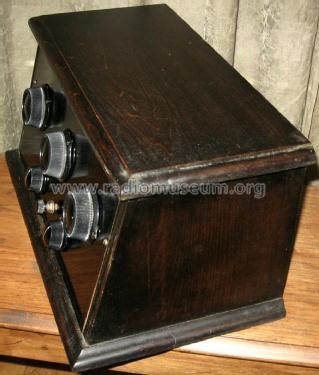

Shape Tablemodel, slant panel.
Dimensions (WHD) 16.75 x 8.25 x 9.25 inch / 425 x 210 x 235 mm
Notes

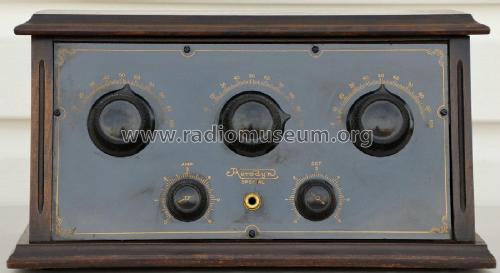

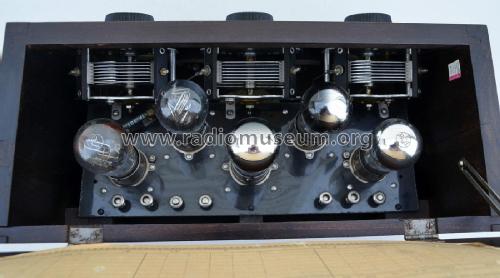

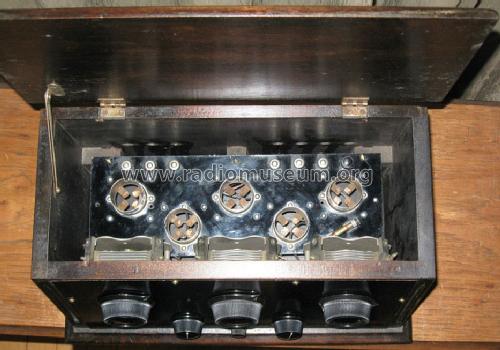

Three-dial set with two-stages of tuned radio frequency amplification using spider web coils, non-oscillating, controlled by three condensers. Two stages of transformer coupled audio frequency amplification. Wavelength range 200-600 meters.

This model is listed in the Radio Collector's Guide under "The Aerodyne Co." which is probably a misnomer or a mixup of different companies.

Net weight (2.2 lb = 1 kg) 16 lb (16 lb 0 oz) / 7.264 kg
Price in first year of sale 38.75 USD
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Collector's Guide to Antique Radios 4. Edition

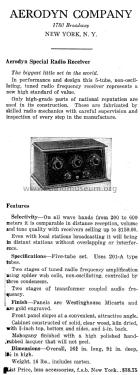

Literature/Schematics (3) August 1926 McGraw-Hill Radio Trade Directory page 108


All listed radios etc. from Aerodyn Company; New York City (NY)
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
