• Country
• Germany

• Manufacturer / Brand
• AFA; Hagen

• Year
• 1935 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 125937

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• N190/20S

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: VARTAX Superior 20/40 - AFA; Hagen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 450 x 1015 x 495 mm / 17.7 x 40 x 19.5 inch

• Notes

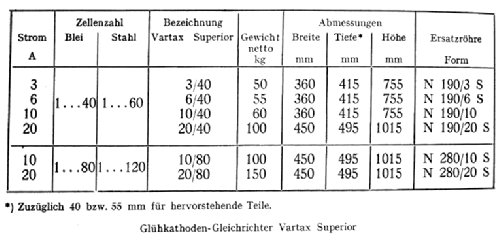

• Ladegleichrichter für gewerbliche Ladestationen von Klein-Akkus. Akkuladegerät für 1...40 Bleizellen oder 1...60 Stahlzellen.
  Maximaler Ladestrom: 20 A.

• Net weight (2.2 lb = 1 kg)
• 100 kg / 220 lb 4.2 oz (220.264 lb)

• Mentioned in
• AFA-Handbuch ca. 1940

• Author
• Model page created by a member from D. See "Data change" for further contributors.
