Faustina 3140 AB

Faustina 3140 AB; Aga, Helsinki - see (ID = 2239230) Radio

Faustina 3140 AB; Aga, Helsinki - see (ID = 2239231) Radio
Faustina 3140 AB; Aga, Helsinki - see (ID = 764966) Radio Faustina 3140 AB; Aga, Helsinki - see (ID = 764969) Radio
Faustina 3140 AB; Aga, Helsinki - see (ID = 764968) Radio Faustina 3140 AB; Aga, Helsinki - see (ID = 764970) Radio
Faustina 3140 AB; Aga, Helsinki - see (ID = 764971) Radio Faustina 3140 AB; Aga, Helsinki - see (ID = 1067322) Radio
Faustina 3140 AB; Aga, Helsinki - see (ID = 1291883) Radio Faustina 3140 AB; Aga, Helsinki - see (ID = 1367063) Radio
Faustina 3140 AB; Aga, Helsinki - see (ID = 1367065) Radio Faustina 3140 AB; Aga, Helsinki - see (ID = 1367067) Radio
Use red slider bar for more.
Faustina 3140 AB; Aga, Helsinki - see (ID = 764966) Radio
Aga, Helsinki - see: Faustina 3140 AB [Radio] ID = 764966 750x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Faustina 3140 AB, Aga, Helsinki - see also in Sweden

Country:  Finland
Manufacturer / Brand:  Aga, Helsinki - see also in Sweden
Brand

Roy-Aga
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC615 OC615 AF105 AF105 AF105 OC604 OC604 AC117 AC117 OA172 OA172 OA160
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Faustina 3140 AB - Aga, Helsinki - see also in
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 200 x 110 mm / 11 x 7.9 x 4.3 inch
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)

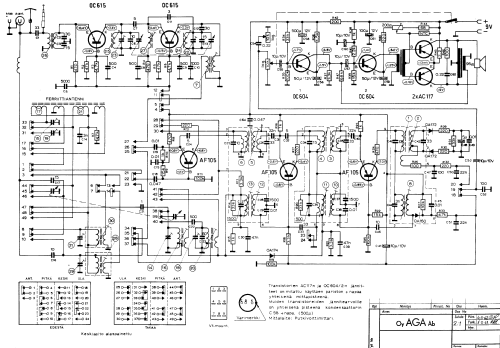

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jouko Laukkanen. See "Data change" for further contributors.



All listed radios etc. from Aga, Helsinki - see also in Sweden
Here you find 21 models, 18 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
