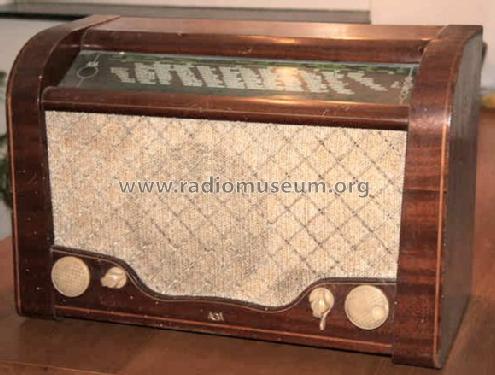

For model 1751, AGA and Aga-Baltic Radio AB; Sweden:
Aus der Sammlung von Thomas Bollinger, CH - 8222 Beringen

Country:  Sweden
Manufacturer / Brand:  AGA and Aga-Baltic Radio AB; Sweden
alternative name

AGA-Baltic Radio AB; Stockholm
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 7S7 7H7 7B6 7C5 6E5 5Y3G
Main principle Superheterodyne (common); ZF/IF 463 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: 1751 - AGA and Aga-Baltic Radio AB;
Material Wooden case
Dimensions (WHD) 540 x 360 x 285 mm / 21.3 x 14.2 x 11.2 inch
Notes Thermosicherung.
Price in first year of sale 725.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
