AGA 1752

AGA 1752; AGA and Aga-Baltic (ID = 2321456) Radio AGA 1752; AGA and Aga-Baltic (ID = 2321455) Radio
AGA 1752; AGA and Aga-Baltic (ID = 2321457) Radio AGA 1752; AGA and Aga-Baltic (ID = 2321458) Radio
AGA 1752; AGA and Aga-Baltic (ID = 2321459) Radio AGA 1752; AGA and Aga-Baltic (ID = 2321460) Radio
AGA 1752; AGA and Aga-Baltic (ID = 2321461) Radio AGA 1752; AGA and Aga-Baltic (ID = 2321462) Radio
AGA 1752; AGA and Aga-Baltic (ID = 2321463) Radio AGA 1752; AGA and Aga-Baltic (ID = 736294) Radio
Use red slider bar for more.

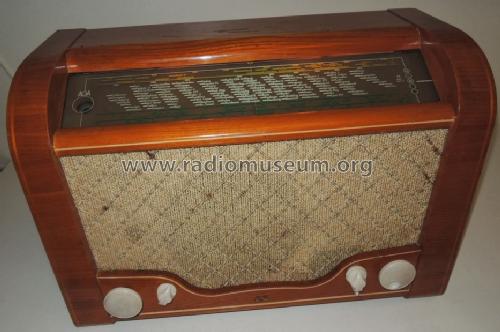

AGA 1752; AGA and Aga-Baltic (ID = 2321456) Radio
AGA and Aga-Baltic: AGA 1752 [Radio] ID = 2321456 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model AGA 1752, AGA and Aga-Baltic Radio AB; Sweden

Country:  Sweden
Manufacturer / Brand:  AGA and Aga-Baltic Radio AB; Sweden
alternative name

AGA-Baltic Radio AB; Stockholm
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 14S7 14H7 14R7 50A5 1629 35Z3
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AGA 1752 - AGA and Aga-Baltic Radio AB;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 536 x 352 x 271 mm / 21.1 x 13.9 x 10.7 inch
Price in first year of sale 389.00 SEK
Source of data - - Manufacturers Literature

Model page created by Aglef Tröger. See "Data change" for further contributors.



All listed radios etc. from AGA and Aga-Baltic Radio AB; Sweden
Here you find 240 models, 184 with images and 111 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
