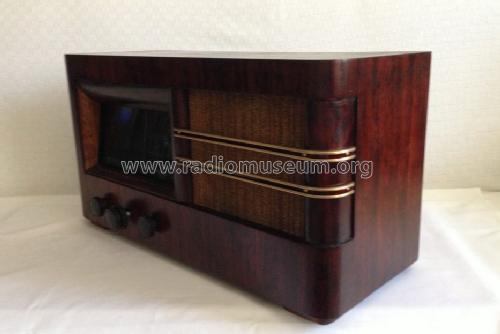

Europa 851; AGA and Aga-Baltic (ID = 97642) Radio
AGA and Aga-Baltic: Europa 851 [Radio] ID = 97642 933x554
Select picture or schematic to display from thumbnails on the right and click for download.
For model Europa 851, AGA and Aga-Baltic Radio AB; Sweden

Country:  Sweden
Manufacturer / Brand:  AGA and Aga-Baltic Radio AB; Sweden
alternative name

AGA-Baltic Radio AB; Stockholm
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6J8G 6K7G 6Q7G 6V6G EM1 5Y4G
Main principle Superheterodyne (common); ZF/IF 133 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Europa 851 - AGA and Aga-Baltic Radio AB;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 565 x 305 x 260 mm / 22.2 x 12 x 10.2 inch
Notes variable Bandbreite, Klangregler, Wellenbereichsanzeige
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from AGA and Aga-Baltic Radio AB; Sweden
Here you find 254 models, 208 with images and 130 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
