• Country
• Sweden

• Manufacturer / Brand
• AGA and Aga-Baltic Radio AB; Sweden

• Year
• 1945 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18103

• • alternative name: AGA-Baltic Radio AB; Stockholm

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6J8G 6K7G 6B8G 25L6G 6E5 25Z6G

• Main principle
• Superheterodyne (common); ZF/IF 133 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 120; 130; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

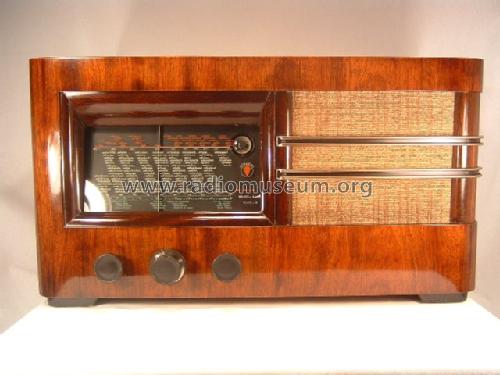

• Model: Europa 852 - AGA and Aga-Baltic Radio AB;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 565 x 305 x 250 mm / 22.2 x 12 x 9.8 inch

• Net weight (2.2 lb = 1 kg)
• 12.7 kg / 27 lb 15.6 oz (27.974 lb)

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.
