Schlager 861; AGA and Aga-Baltic (ID = 13589) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Sweden
Manufacturer / Brand:  AGA and Aga-Baltic Radio AB; Sweden
alternative name

AGA-Baltic Radio AB; Stockholm
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K7G 6J8G 6K7G 6B8G EM4 6V6G 5Y4G
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Schlager 861 - AGA and Aga-Baltic Radio AB;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 340 x 240 mm / 25.2 x 13.4 x 9.4 inch
Notes

Variable bandwidth in one IF-transformer. Switch for using mains connection as antenna.

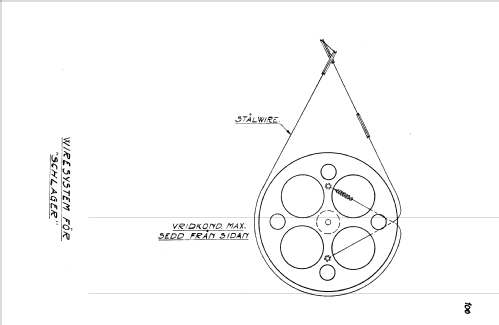

Push-button tuning with 6 stations.

External source of data E. Erb 3-907007-36-0

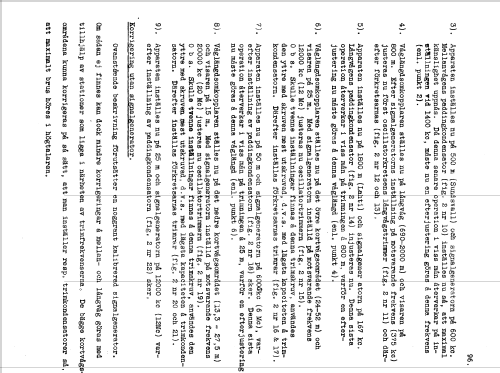

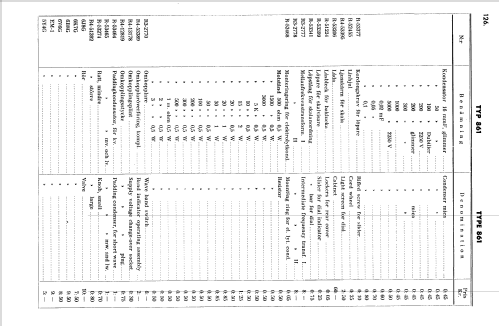

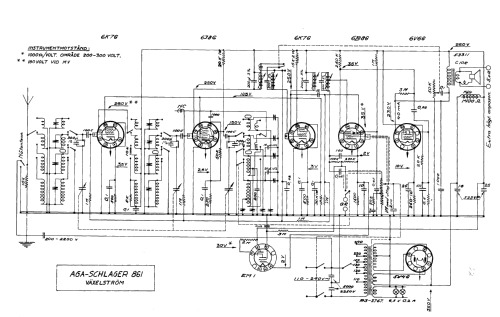

Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
