Transistor 3040 FM

Transistor 3040 FM; AGA and Aga-Baltic (ID = 1861666) Radio Transistor 3040 FM; AGA and Aga-Baltic (ID = 1861667) Radio
Transistor 3040 FM; AGA and Aga-Baltic (ID = 1861041) Radio Transistor 3040 FM; AGA and Aga-Baltic (ID = 1861692) Radio
Transistor 3040 FM; AGA and Aga-Baltic (ID = 1861693) Radio
Use red slider bar for more.

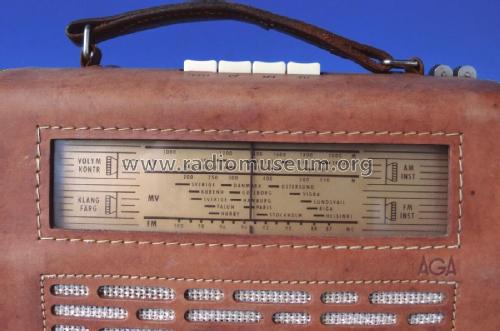

Transistor 3040 FM; AGA and Aga-Baltic (ID = 1861666) Radio
AGA and Aga-Baltic: Transistor 3040 FM [Radio] ID = 1861666 725x664
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor 3040 FM, AGA and Aga-Baltic Radio AB; Sweden:
Mit Genehmigung AGA Museum te Emmen NL

Country:  Sweden
Manufacturer / Brand:  AGA and Aga-Baltic Radio AB; Sweden
alternative name

AGA-Baltic Radio AB; Stockholm
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC615 OC615 OC614 OC614 OC614 OC604 OC604 OC604spez OC604spez OA172 OA172 OA160
schematic requested
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Transistor 3040 FM - AGA and Aga-Baltic Radio AB;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 220 x 100 mm / 9.8 x 8.7 x 3.9 inch
Notes

Kofferradio mit Anschlüssen zum Einbau in ein Auto.

Gehäuse komplett aus 3 mm dickem Leder, innen verstärkt durch Karton (Pappe).

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Collectors' prices

Model page created by Dietrich Grötzer. See "Data change" for further contributors.
