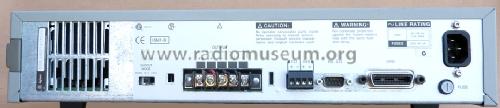

Dynamic Measurement DC Source 66332A
Agilent Technologies; Santa Clara, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Agilent Technologies; Santa Clara, CA
- Year
- 2000 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 244830
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 100; 120; 220; 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Dynamic Measurement DC Source 66332A - Agilent Technologies; Santa
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 425.5 x 100 x 346 mm / 16.8 x 3.9 x 13.6 inch
- Notes
-
Output Ratings
Voltage: 0-20V
Current: 0-5A
Programming Accuracy
Voltage: 0,05% + 10mV
Current: 0.05% + 2mA
DC Measurement Accuracy
Voltage:0,03% + 3mV
Low Current:-20mA to +20mA:0,1% + 2,5µA
Higt Current: +20mA to rated: 0,2% + 0.5mA
-20mA to rated: 0,2% + 1,1mA
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
