• Year
  • 2000 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 337651

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 100-240 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Oscilloscope 54622A - Agilent Technologies; Santa
  • Notes

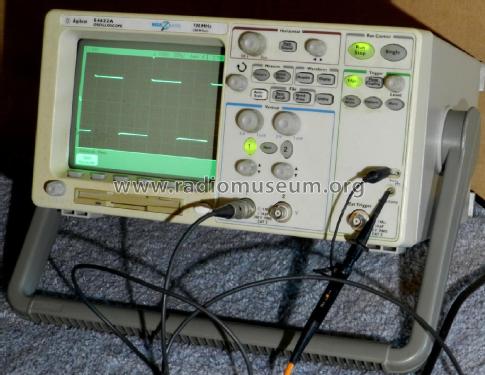

  • The Agilent scope model 54622A is one of a series of related Agilent scopes.  Model 54622A is capable of 100 MHz bandwidth with two channels and also 16 logic channels.  It also has 2 Megabytes of "Megazoom" deep memory per channel.  Trigger modes include Edge, Pulse Width, Pattern, CAN, Duration, I2C, LIN, Sequence, SPI, TV and USB triggering.  Soft keys extend the functionality of command keys.  Built-in quick help system available in 11 languages.  Utilities  include a dedicated parallel printer port, controller operation and floppy disk storage (3.5 inch diskette). For the 16 digital channels, logic level can be set at TTL, CMOS, ECL or a user-definable voltage. There are two Run Control options: Run/Stop starts and stops continuous acquisition; and Single performs a single acquisition.

  • Mentioned in
  • - - Manufacturers Literature (User's Guide copyright 2000-2002)
  • Author
  • Model page created by Rich Post. See "Data change" for further contributors.
