Spectrum Analyzer 9 kHz - 2.9 GHz 8594E

Agilent Technologies; Santa Clara, CA

Data
Forum
Pictures
Collections

  • Year
  • 1999 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 361194

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage

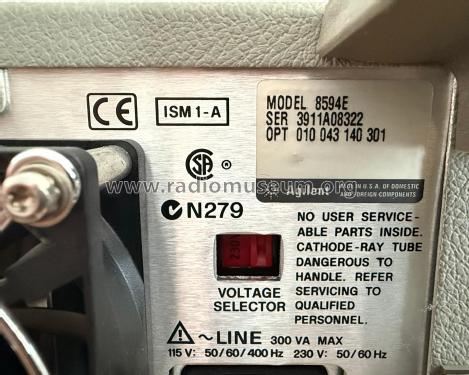

  • Alternating Current supply (AC) / 50-400 Hz, 115; 50-60 Hz, 230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Spectrum Analyzer 9 kHz - 2.9 GHz 8594E - Agilent Technologies; Santa
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 375 x 185 x 465 mm / 14.8 x 7.3 x 18.3 inch
  • Notes

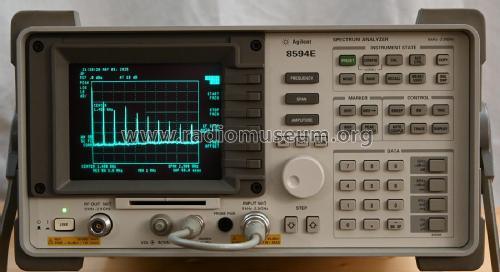

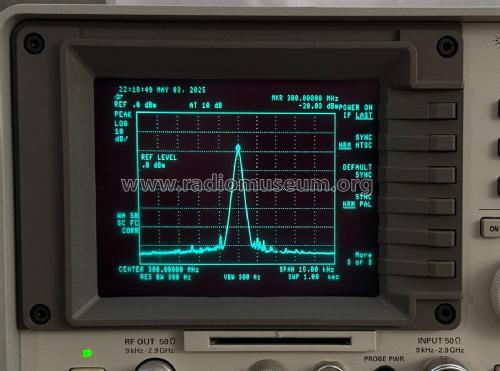

  • The Agilent (formerly manufactured by Hewlett Packard) Spectrum Analyzer model 8594E covers the frequency range from 9 kHz to 2.9 GHz.

    • Frequency Span, Range 0 Hz (zero span) and 10 kHz to 2.9 GHz; 1 kHz min (Option 130)
    • Sweep Time, Range Span = 0 Hz or > 1 kHz: 20 ms to 100 s; Span = 0 Hz (Option 101): 20 µs to 100 s
    • Resolution Bandwidth: 1 kHz to 3 MHz (3 dB) in 1, 3, 10 sequence; 9 kHz and 120 kHz (6 dB) EMI bandwidths. Option 130 adds 30, 100, and 300 Hz (3 dB) narrow bandwidths and 200 Hz (6 dB) EMI bandwidth.
    • Video Bandwidth Range: 30 Hz to 1 MHz in 1, 3 sequence (1 Hz to 1 MHz with Option 130)
    • TV Sync Trigger, Fast Time-Domain Sweeps, AM/FM Demodulator, Analog+ Display, Loudspeaker (Option 301)
    • Amplitude, Display Range: Log Scale: 0 to –70 dB from ref level is calibrated; 0.1, 0.2, 0.5 dB/div and 1 to 20 dB/div in 1 dB steps; 8 div displayed, Linear Scale: 8 divisions, Scale Units: dBm, dBmV, dBµV, V, W
    • Reference Level Range: Same as amplitude range, Resolution: ± 0.01 dB for log scale; ± 0.12% of ref level for linear scale
    • Accuracy: ± 0.3 dB at –20 dBm; 0 to –59.9 dBm: ± (0.3 dB + 0.01 x dB from –20 dBm)
    • Calibrator Output Amplitude: –20 dBm ± 0.4 dB; + 28.75 dBmV ± 0.4 dB,
    • Tracking Generator (Option 010): 9 kHz to 2.9 GHz, Output level -1 to -66 dBm, Resolution 0.1 dB
    • Frequency Reference: Aging: ± 2 x 10–6/year; ± 1 x 10–7/year (Option 004), Temperature Stability: ± 5 x 10–6; ± 1 x 10–8 (Option 004).

    Size without handle, feet, or cover: 325 mm W x 163 mm H x 427 mm D, weight 16.5 kg

  • Net weight (2.2 lb = 1 kg)
  • 17.5 kg / 38 lb 8.7 oz (38.546 lb)
  • Mentioned in
  • - - Manufacturers Literature (hp/Agilent data sheet and catalog 8590 E series)
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
