A3W

A3W; Ahemo-Werkstätten; (ID = 64832) Radio
A3W; Ahemo-Werkstätten; (ID = 869878) Radio A3W; Ahemo-Werkstätten; (ID = 869873) Radio
A3W; Ahemo-Werkstätten; (ID = 869875) Radio A3W; Ahemo-Werkstätten; (ID = 91829) Radio
A3W; Ahemo-Werkstätten; (ID = 869871) Radio A3W; Ahemo-Werkstätten; (ID = 869872) Radio
A3W; Ahemo-Werkstätten; (ID = 869874) Radio A3W; Ahemo-Werkstätten; (ID = 869876) Radio
A3W; Ahemo-Werkstätten; (ID = 869877) Radio A3W; Ahemo-Werkstätten; (ID = 1477437) Radio
Use red slider bar for more.

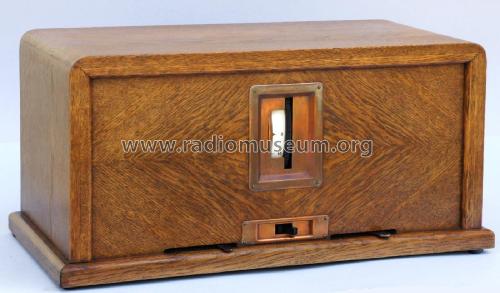

A3W; Ahemo-Werkstätten; (ID = 869878) Radio
Ahemo-Werkstätten;: A3W [Radio] ID = 869878 933x514
Select picture or schematic to display from thumbnails on the right and click for download.
For model A3W, Ahemo-Werkstätten; Berlin-Charlottenburg::
Sammlung

Country:  Germany
Manufacturer / Brand:  Ahemo-Werkstätten; Berlin-Charlottenburg:
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: REN904 REN904 RE604 RGN2004
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: A3W - Ahemo-Werkstätten; Berlin-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 445 x 225 x 215 mm / 17.5 x 8.9 x 8.5 inch
Notes Trommelskala
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 248.00 RM !
External source of data E. Erb 3-907007-36-0
Source of data Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Der Radio-Händler / Radio-Fernseh-Händler (ab Aug. 1951, H.15) (2920)


All listed radios etc. from Ahemo-Werkstätten; Berlin-Charlottenburg:
Here you find 39 models, 30 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
